Rollers and Roller Accessories
 Takach Press Hand Inking Roller
|
"I've been printing professionally for 24 years and without a doubt, Takach's presses and rollers are the best. They stand the test of time. Our one hand operated press was made in 1977 and is still going strong, also we are still using a few of their rollers that are going to be 25 years old soon."
-Bill Lagattuta, Master Printer,
Tamarind Institute
Tamarind Institute
Takach Press Hand Inking Rollers are Made of High Quality Rubber on an Aluminum Core
We manufacture the finest inking rollers available. The rubber is a combination of natural rubber with Buna Nitrite blend. This blend of rubber keeps the durometer consistent and also gives the rubber a longer life span as well as the highest durability. This high quality rubber is wrapped on the aluminum roller core, cured, ground and polished. The wrapped rubber technique of rubber application is superior to cast rubber surface applications, since it will not revert to a liquid as is often seen in cast rubber rollers.Shipping and storage of Takach Hand Inking Rollers
A quality shipping container is provided for shipping of Hand Inking Rollers and can also be used for print studio storage of the roller.Cleanup of Takach Press Hand Inking Rollers
To clean Takach Press rollers several types of cleaning agents can be used. Solvent based cleaners for oil based inks and nontoxic cleaners as well as soap and water for water based ink cleanup. For final cleanup before storage it is recommended that a roller wash such as Varn 133 or Varn 120 be used.Repair of Damaged Hand Inking Rollers
Should a Hand Inking Roller become accidentally dented, our facility is equipped to regrind the surface, after removing the end caps and straightening the core.If needed, the roller may be recoated. Contact Takach Press for pricing.
Durometer / Hardness of the Rubber Used on Takach Hand Inking Rollers
The durometer, or hardness of the rubber, is measured from 20 (softest) to 60 (hardest).Durometer of Lithography Hand Inking Rollers
Hand Inking Rollers for lithography applications, 35 durometer is normally used.Durometer of Etching Hand Inking Rollers
Hand Inking Rollers for etching applications, the full durometer range is utilized.A set of etching Hand Inking Rollers used for viscosity printing would consist of:
1 - 20 durometer Hand Inking Roller,
1 - 35 durometer Hand Inking Roller,
and 1 - 60 durometer Hand Inking Roller.
Custom Takach Hand Inking Rollers
- Hand Inking Rollers in 20 or 60 durometer are special order.
- Takach Press will custom build Hand Inking rollers up to 24" in diameter with lengths up to 48"!
- Takach Press will manufacture all listed Hand Inking Roller diameters to custom lengths.
- All Hand Inking Rollers larger than 10.5" in diameter will be quoted by request. Contact Takach Press for pricing.
- Please allow 6-8 weeks for delivery on custom Hand Inking Rollers.
Notes on Selecting A Takach Hand Inking Roller
- Roll Out length refers to the length a roller will lay down ink without a lap mark.
- Rollers listed are considered standard sizes and are normally in stock in 35 durometer only.
| Item Number | Roller Diameter | Face Length | Roll out Length* | Roller Weight | Durometer | Price |
35 Durometer Hand Inking Rollers (Normally in Stock) |
||||||
| 4000735 | 4.75" | 7.75" | 15" | 3.0 lbs. | 35 | $235.00 |
| 4001235 | 4.75" | 12.75" | 15" | 6.0 lbs. | 35 | $310.00 |
| 4001435 | 4.75" | 14.75" | 15" | 7.0 lbs. | 35 | $355.00 |
| 4001635 | 4.75" | 16.75" | 15" | 8.0 lbs. | 35 | $405.00 |
| 4001835 | 4.75" | 18.75" | 15" | 9.0 lbs. | 35 | $455.00 |
| 4011635 | 6.75" | 16.75" | 21.25" | 11.5 lbs. | 35 | $495.00 |
| 4012035 | 6.75" | 20.75" | 21.25" | 14.0 lbs. | 35 | $620.00 |
| 4022035 | 8.5" | 20.75" | 26.75" | 16.0 lbs. | 35 | $670.00 |
| 4022435 | 8.5" | 24.75" | 26.75" | 18.0 lbs. | 35 | $785.00 |
| 4032435 | 10.5" | 24.75" | 33" | 21.0 lbs. | 35 | $830.00 |
| 4032635 | 10.5" | 26.75" | 33" | 24.0 lbs. | 35 | $895.00 |
20 Durometer Hand Inking Rollers (Special Order) |
||||||
| 4000720 | 4.75" | 7.75" | 15" | 3.0 lbs. | 20 | $235.00 |
| 4001220 | 4.75" | 12.75" | 15" | 6.0 lbs. | 20 | $310.00 |
| 4001420 | 4.75" | 14.75" | 15" | 7.0 lbs. | 20 | $355.00 |
| 4001620 | 4.75" | 16.75" | 15" | 8.0 lbs. | 20 | $405.00 |
| 4001820 | 4.75" | 18.75" | 15" | 9.0 lbs. | 20 | $455.00 |
| 4011620 | 6.75" | 16.75" | 21.25" | 11.5 lbs. | 20 | $495.00 |
| 4012020 | 6.75" | 20.75" | 21.25" | 14.0 lbs. | 20 | $620.00 |
| 4022020 | 8.5" | 20.75" | 26.75" | 16.0 lbs. | 20 | $670.00 |
| 4022420 | 8.5" | 24.75" | 26.75" | 18.0 lbs. | 20 | $785.00 |
| 4032420 | 10.5" | 24.75" | 33" | 21.0 lbs. | 20 | $830.00 |
| 4032620 | 10.5" | 26.75" | 33" | 24.0 lbs. | 20 | $895.00 |
60 Durometer Hand Inking Rollers (Special Order) |
||||||
| 4000760 | 4.75" | 7.75" | 15" | 3.0 lbs. | 60 | $235.00 |
| 4001260 | 4.75" | 12.75" | 15" | 6.0 lbs. | 60 | $310.00 |
| 4001460 | 4.75" | 14.75" | 15" | 7.0 lbs. | 60 | $355.00 |
| 4001660 | 4.75" | 16.75" | 15" | 8.0 lbs. | 60 | $405.00 |
| 4001860 | 4.75" | 18.75" | 15" | 9.0 lbs. | 60 | $455.00 |
| 4011660 | 6.75" | 16.75" | 21.25" | 11.5 lbs. | 60 | $495.00 |
| 4012060 | 6.75" | 20.75" | 21.25" | 14.0 lbs. | 60 | $620.00 |
| 4022060 | 8.5" | 20.75" | 26.75" | 16.0 lbs. | 60 | $670.00 |
| 4022460 | 8.5" | 24.75" | 26.75" | 18.0 lbs. | 60 | $785.00 |
| 4032460 | 10.5" | 24.75" | 33" | 21.0 lbs. | 60 | $830.00 |
| 4032660 | 10.5" | 26.75" | 33" | 24.0 lbs. | 60 | $895.00 |
Replacement roller handle (1.25"Diameter x 5.5" Long, PVC)
$50.00 pair.
Replacement roller handle (1.25"Diameter x 5.5" Long, Powder Coated, Solid Aluminum)
$110.00 pair.
Back To Top
 Varn 133 Roller Wash
|
Varn 133 Roller Wash
This petroleum based product is the recommended final cleanup wash before storage for Takach Press Hand Inking Rollers and Hand Brayers. Varn 133 gives deep cleaning wash up and prolongs roller and brayer life. Varn 133 keeps rubber surfaces soft and reduces glaze.Ground shipping only.
Varn 133 Roller Wash
$29.00 per gallon.
Varn 120 Roller Wash
 Varn 120 Roller Wash
|
Varn 120 Roller Wash
$29.00 per gallon.
Back To Top
 Takach Specialty Hand Brayer
|
Takach Specialty Hand Brayers
These are the highest quality, narrow-sized Hand Brayers available, made with the same quality of rubber used on all Takach Press Hand Inking Rollers and Hand Brayers. They have a large 1 3/4" diameter and a 35 durometer medium hardness. Features include a high impact resistant handle and a sturdy frame, coupled with a self-lubricating bearing for extended service. These brayers will meet the demands of the professional printmaker and the students equally well.| Item # | Roller Diameter in Inches | Face Length in Inches | *Roll Out Length in Inches | Durometer | Price |
| 432235 | 1 3/4" | 1/4" | 5 1/2" | 35 | $44.00 |
| 432435 | 1 3/4" | 1/2" | 5 1/2" | 35 | $45.00 |
| 432635 | 1 3/4" | 3/4" | 5 1/2" | 35 | $46.00 |
| 432835 | 1 3/4" | 1" | 5 1/2" | 35 | $47.00 |
 Takach Specialty Hand Brayers Set
|
Takach Press Set of Specialty Hand Brayers
Set include all four sizes of Specialty Hand Brayers shown above (1/4", 1/2", 3/4" and 1") as well as Maple Storage Block.
$165.00
Buy the set and save 10%.
Back To Top
 Takach Hand Inking Brayer
|
Takach Press Hand Brayers:
In our opinion, these are the best brayers money can buy. The rubber composition is the same as our top quality Hand Inking Rollers. Bushings are installed in the powder-coated brayer frame to insure smooth operation. The large 2.5" diameter will roll out 7.75" of ink without a lap mark. Standard durometer of rubber is 20. This provides the most versatility hardness for various printmaking techniques. 60 durometer available for processes requiring a harder rubber surface.| Item # | Diameter | *Roll Out Length | Length | Durometer | Price |
20 Durometer Hand Inking Brayers |
|||||
| 4300420 | 2.5" | 7.75" | 4" | 20 | $147.00 |
| 4300620 | 2.5" | 7.75" | 6" | 20 | $168.00 |
| 4300820 | 2.5" | 7.75" | 8" | 20 | $187.00 |
| 4301020 | 2.5" | 7.75" | 10" | 20 | $208.00 |
60 Durometer Hand Inking Brayers |
|||||
| 4300460 | 2.5" | 7.75" | 4" | 60 | $147.00 |
| 4300660 | 2.5" | 7.75" | 6" | 60 | $168.00 |
| 4300860 | 2.5" | 7.75" | 8" | 60 | $187.00 |
| 4301060 | 2.5" | 7.75" | 10" | 60 | $208.00 |

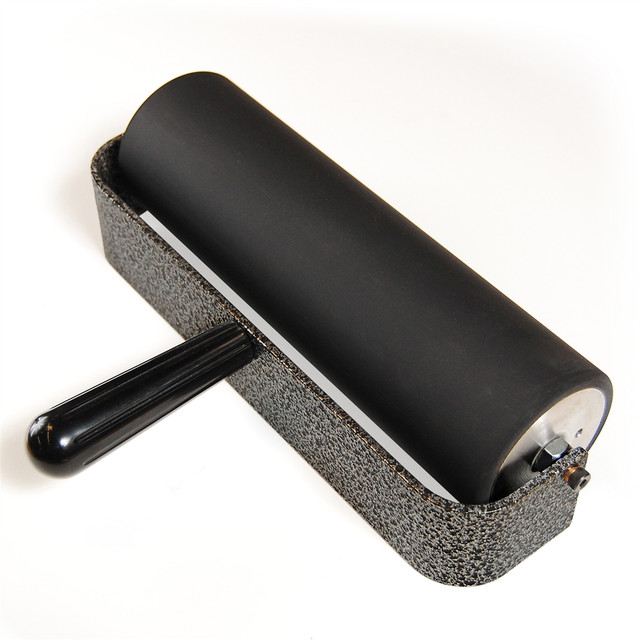

 Takach Jumbo Inking Brayer
|
Takach Jumbo Brayer
Our Jumbo Brayer fills the gap between our small hand brayers and our larger hand-inking rollers. The brayer has a large 3 1/2" diameter and a 12" face length. This large diameter gives you an 11" roll-out length providing an 11" x 12" square of ink without a lap mark. It has the same quality of rubber and the same lightweight aluminum powder coated frame as our other brayers. In stock at 30 durometer. It is also available from 20 durometer to 60 durometer.Takach Jumbo Brayer
$248.00
Back To Top
Speedball Hand Brayers:
 Speedball Brayer
|
| Item # | Width | Price |
| 431150 | 1.5" | $11.65 |
| 431200 | 2.0" | $11.99 |
| 431250 | 2.5" | $13.05 |
| 431300 | 3.0" | $13.50 |
| 431350 | 3.5" | $13.95 |
| 431400 | 4.0" | $14.75 |
| 431600 | 6.0" | $15.60 |
Back To Top
Foam Brayers:
This closed cell foam brayer is recommended for use with Akua-Kolor ink when a printmaker wishes to roll out a thicker layer of ink than a rubber brayer provides (4" wide)Foam Brayers
$9.10 each
Back To Top
 Takach Leather Roller Cuffs
|
Protect Your Hands When Inking With Leather Roller Cuffs
Roller Cuffs are designed to slip over your roller handles. This product will protect your hands during long printing sessions.Takach Hand Inking Roller Cuffs
$35.00/pair
 Stones Leather Roller Cuffs
|
Stones Leather Roller Cuffs
$35.00/pair
Back To Top
 Takach Grabit Roller
|
Simulated Leather
Grabit Inking Rollers
These quality rollers are manufactured as a standard Hand Inking Roller. The first layer of rubber is wrapped as a standard roller. Next, an elastomeric ink roll covering formulation is applied which is uniformly impregnated with synthetic fibers. The result is a rubber hand inking roller that performs like a leather roller.
A quality shipping container is supplied at no charge. You may use the lid of the container to store the Simulated Leather Grabit Inking Roller on your studio workbench.Cleaning Simulated Leather Grabit Inking Rollers
The Grabit Roller may be cleaned with Varn 133 Roller Wash. Using a fine bristle brush dampened with roller wash will restore the nap of the roller should it become matted. The ability to clean these rollers doesn't limit you to using black ink, as with leather inking rollers. Any ink color may be used.| Item # | Roller Diameter in Inches | Face Length in Inches | *Roll Out Length in Inches | Price |
| 41014 | 4.75" | 14.75" | 15" | $430.00 |
| 41016 | 4.75" | 16.75" | 15" | $490.00 |
Special Order Simulated Leather Grabit Inking Rollers available on request. Contact Takach Press for pricing.
Back To Top

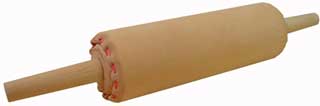

 Traditional Leather Roller
|
Leather Inking Rollers
These traditional leather lithography rollers have a maple wood core and handles. Stones manufactures these one-at-a-time, featuring a hand-stitched seam. Each roller comes with break-in procedure instructions.Manufacture's 1-year warranty and serial number.
If not in stock, please allow 3-4 weeks for delivery.
| Item # | Size | Price |
| 420412 | 4" x 12" | $335.00 |
| 420414 | 4" x 14" | $360.00 |
| 420416 | 4" x 16" | $385.00 |
| 420418 | 4" x 18" | $450.00 |
| 420420 | 4" x 20" | $500.00 |
New Leather Inking Roller Conditioning:
This added service delivers your leather inking roller ready to print.
$59.00
Back To Top
