Aluminum Plate Backers
![]() Aluminum Plate Backer |
"Both at my studio and at the University studio we use Takach rollers, Takach aluminum plates, Takach scraper bars, and at UT we use the lightweight Takach plate backer, a must for every school shop."
-Ken Hale,
University Of Texas Austin
University Of Texas Austin

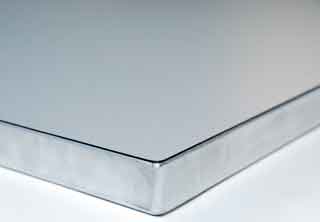

Precision Aluminum Plate Backer
Takach Plate Backers are precision ground on both sides for ultimate flatness. Made of 1" thick aluminum these relativly lightweight plate backers will not warp or emboss. A phenolic-resin sheet is bonded to one side, providing a durable work surface that will prevent scratching and is easy to clean. If the printer prefers, he or she may turn the backer over and use the bare aluminum surface as the top side of the backer.Aluminum Plate Backer Information |
||
| Item Number | Plate Backer Sizes Available | Plate Backer Weight |
| 172636 | 25.5" x 36" | 90 lbs |
| 173040 | 30" x 40" | 120 lbs. |
| 173648 | 36" x 48"; | 170 lbs. |
2 new sizes designed to fit 3460 Litho and 4072 Litho Press Beds. |
||
| 1733352 | 33" x 51" | 178 lbs. |
| 173964 | 39" x 64" | 249 lbs. |
Custom Size Plate Backer
Custom and large sizes Plate Backers are available upon request.Purpose of Plate Backer
Plate backers are required when printing ball grained aluminum plate, photolitho plate, polyester plate, on a litho press.Hard Level Surface
A plate backer must provide a hard level surface, larger than the plate to be printed, and thick enough that the press will make contact when printing thin litho plates.Aluminum is the Ideal Plate Backer Material
Backers made of materials other than aluminum, are not ideal.Weight - The backer must be a managable weight that can be transfered onto and off of the press bed, aluminum plate backers are lightweight compared to steel or large litho stones.
Warping - Other plate backer materials especially plastics are effected by heat and humidity and will warp creating uneven printing pressure areas.
Durability - Plastic backers have the reputation for becoming embossed by the printing pressure. Slate plate backers have a tendousy to flake off.
These extremely durable Aluminum Plate Backers are ideal for printing litho plate as they will not emboss after repeated printing, are not effected by heat or humidity, and are light weight.
