Plates, Films & Chemistry: Z*Acryl Etching System

Z*Acryl Etching System

Z*Acryl Etching System eliminates the use of organic solvents, rosins and varnishes from the etching studio. The vertical etching tank was designed by Z*Acryl to promote the use of ferric chloride. Z*Acryl hardground emulsion is a nontoxic alternative to asphaltum based grounds.

Tank

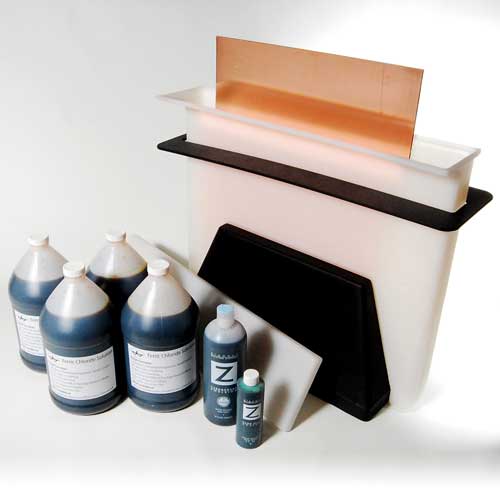

Vertical Etching Tank
1/4" thick molded polyethylene. The form-fitting lid minimizes evaporation; a built in funnel allows the tank to be easily and safely filled. Any etchant may be used, however the Z*Acryl Tank was designed to promote the use of ferric chloride. The large tank will etch two full 18" x 24" plates, yet it uses 80% less studio space than does a traditional bath-style tray.*Note: insert no longer available

Grounds

Z*Acryl Hardground Emulsion
A water-soluble, nontoxic acrylic polymer serves as an alternative to asphaltum based grounds. Also designed so that it can be sprayed through an airbrush to create superb aquatints, replacing hazardous rosin.
(32 oz. Bottle)

Z*Acryl Stopout Resist
Thicker formulation of Hardground Emulsion. Completely water-soluble and nontoxic.
(8 oz. Bottle)
Z*Acryl Photopolymer Film
This 30 sq ft roll of photopolymer film,should be laminated to plate, exposed with UV light, and developed with a mixture of soda ash and water.
(24" x 15' roll)

Etchant

Item # 32201 (gallon), 32202 (two gallons), 32204 (four gallons)

Ferric Chloride Premixed; may be used as an etching solution with copper in Z*Acryl Etching tanks. Stays active longer than nitric acid.
Will etch copper without hazardous fumes.
*hazardous material shipping fees apply, up to four gallons can ship under one hazardous fee.

Hand Held Siphon Pump
Used to transfer etchants such as ferric chloride or nitric acid. Moves 8 oz. of fluid per stroke.
